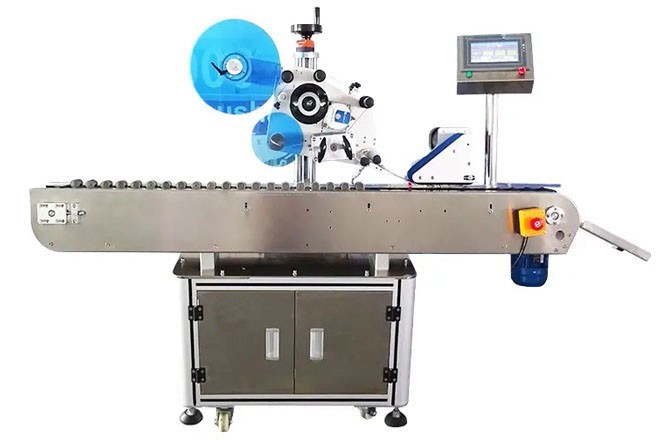

Horizontal Labeling Machine for Unstable Containers

In the diverse landscape of packaging automation, vertical labeling machines dominate the processing of standard, upright containers. However, a significant segment of the market consists of products that are physically incapable of standing on their own. The horizontal labeling machine is the specialized engineering solution designed to address this exact challenge, providing a stable, rolling platform for labeling unstable cylindrical items with high-speed precision.

Mastering the Mechanics of Rolling Application

The fundamental operating principle of a horizontal labeling machine sets it apart from its vertical counterparts. Products are fed into the machine and transitioned onto a specialized horizontal rolling conveyor. As the items lie on their side, they are rotated at a precise speed by friction-driven rollers. Simultaneously, the label is dispensed and applied to the rolling surface. This continuous, synchronized motion ensures that the label is wrapped smoothly and evenly, completely eliminating the risk of gravity-induced slippage or wrinkling that can occur when labeling unstable items vertically.

Catering to Niche and Unstable Product Geometries

The horizontal labeling machine is indispensable for industries dealing with small-diameter, short, or inherently unstable containers. This includes pharmaceutical ampoules, oral liquid vials, blood collection tubes, and cosmetic items like lipstick tubes and eyebrow pencils. Additionally, this equipment is widely utilized in the food sector for labeling products like ham sausages and small batteries. Its adjustable tilt design and precise positioning mechanisms ensure that these challenging items are accurately oriented and labeled without jamming or falling off the line.

High-Speed Precision and Closed-Loop Control

Despite the complex mechanics of rolling application, modern horizontal labeling machines achieve remarkable throughput and accuracy. Utilizing advanced servo motors and programmable logic controllers (PLCs), these machines can process up to 200 products per minute with a labeling precision of ±1mm. High-torque, low-inertia servo motors power the label dispensing mechanism, ensuring consistent tension and preventing label breakage at high speeds. Integrated photoelectric sensors provide real-time feedback, guaranteeing that each label is applied perfectly aligned.

Seamless Integration and Advanced Finishing

The horizontal labeling machine is rarely a standalone island; it is designed to integrate seamlessly into broader automated packaging lines. It can be positioned inline with high-speed filling, capping, and cartoning equipment to create a continuous, unattended workflow. Furthermore, these machines can be equipped with optional finishing modules. Pneumatic rollers are frequently used to press labels firmly onto the container immediately after application, ensuring zero bubbles or wrinkles, especially when applying transparent films. Optional inline printing units can also be integrated to print batch numbers, expiration dates, or barcodes directly onto the label during the application process.
