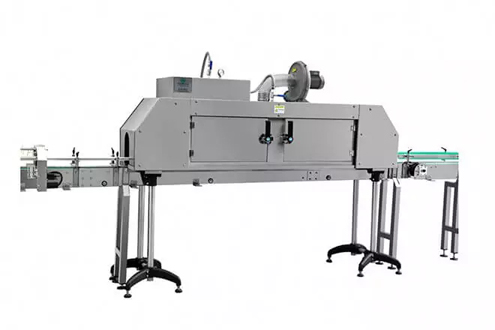

Steam Heat Tunnel: Enhancing Moisture-Sensitive Packaging Lines

One practical advantage of steam-based shrinking is its gentle heat profile. Because the film is heated by saturated steam rather than direct high-temperature airflow, the risk of localized overheating can be reduced when the system is properly balanced. This helps protect thin sleeves and delicate printed graphics from scorching, gloss variation, or uneven shrink marks. The result is often a cleaner appearance, especially on containers with shoulders, recessed panels, or complex curvature.

However, moisture management remains central to reliable operation. Condensate that is not removed efficiently can drip onto containers, cause label slippage, or create water spots on printed surfaces. Effective drainage design, steam traps, and chamber sealing help minimize these issues. Many lines also add air knives, drying tunnels, or extended cooling sections after the steam tunnel to ensure containers are dry before coding, case packing, or palletizing.

Film selection becomes even more important in steam applications. Films with suitable shrink temperature ranges, moisture resistance, and dimensional stability tend to perform better under saturated steam conditions. Trials should evaluate not only shrink ratio and clarity, but also how the film behaves after repeated exposure to steam and subsequent cooling. In some cases, adjusting film thickness or switching to a steam-compatible grade can reduce wrinkles without increasing energy consumption.

For buyers evaluating a steam heat tunnel, the decision should be based on the full packaging environment rather than shrink performance alone. Container type, label construction, line speed, available utilities, and post-tunnel drying capacity all influence whether steam shrinking delivers consistent value. When these factors are aligned, steam tunnels can support high-quality sleeve application while maintaining stable output in demanding production settings.
