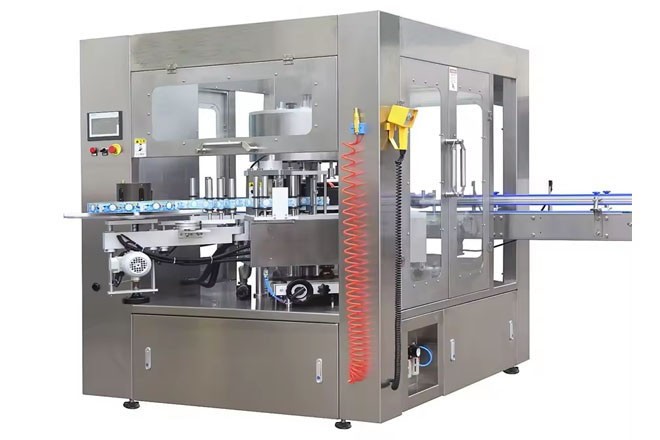

SRT-50 Automatic OPP Hot Melt Adhesive Labeling Machine

SRT-50 Automatic OPP Hot Melt Adhesive Labeling Machine

SRT-50 Automatic OPP Hot Melt Adhesive Labeling Machine, high-speed, reliable labeling for round and flat containers using OPP film and hot melt glue. Ideal for beverage, food, and pharmaceutical products. servo-driven, with easy operation and maintenance.

Feature

SRT-50 automatic opp hot melt adhesive labeling machine,It is suitable for OPP full-circle labeling of PET, PP, PE round and square bottles of mineral water, beverages, milk, detergents, etc. It has automatic logic program control, human-machine interface, simple operation and convenient maintenance.

Corresponding specifications can be customized according to the product.

Parameters

Model	SRT-50
Available bottle dimension	Diameter:40-105mm,height=80-350MM
Label specification	Length:125-325mm,Height:20-150mm
Gluing way	Roll painting(about 10mm, both label head and tail)
Capacity	9000-36000 bottles per hour(500ml bottle)
Glue Consumption	1 kg/ 100,000bottle (label height:50mm)
Compressed Air Pressure	MIN5.0bar MAX8.0bar
Consumption of Compressed Air	0.2M³/minute
Overall dimension	L=3150,W=1770,H=1800 (cm)
Voltage	380V
Frequency	50Hz
Power	8KW
Total Weight	2500Kg
